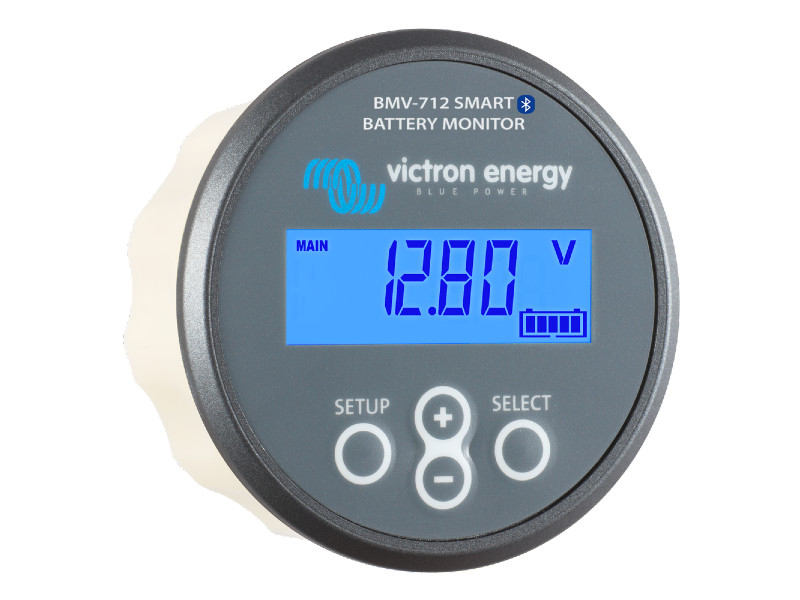

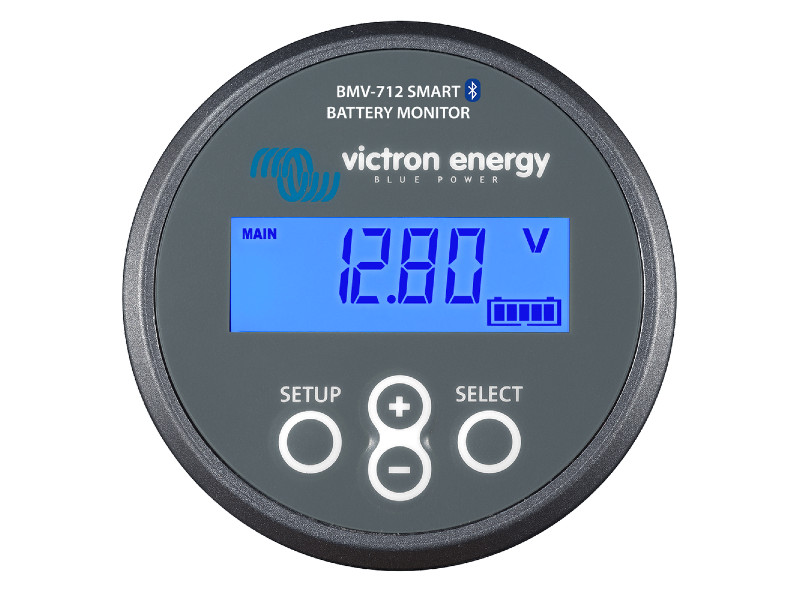

Victron Smart Battery Monitor With Built-in Bluetooth BMV-712

Victron Smart Battery Monitor With Built-in Bluetooth BMV-712

The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery.

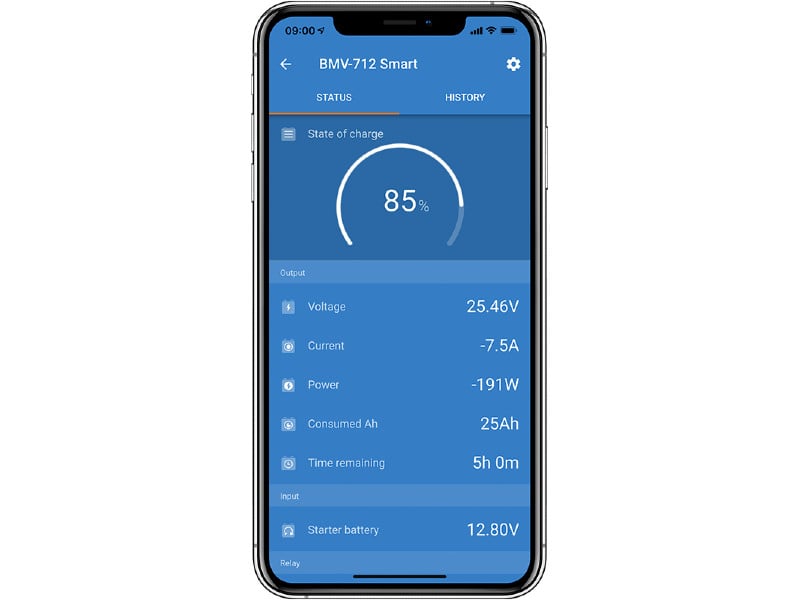

With Bluetooth built-in, the BMV Smart is ready for the Internet. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance.

Features:

• Battery Voltage, Current, Power, Ampere-Hours Consumed and State of Charge
• Remaining time at the Current Rate of Discharge
• Programmable Visual and Audible Alarm
• Programmable Relay, to turn off non Critical Loads or to run a Generator when Needed

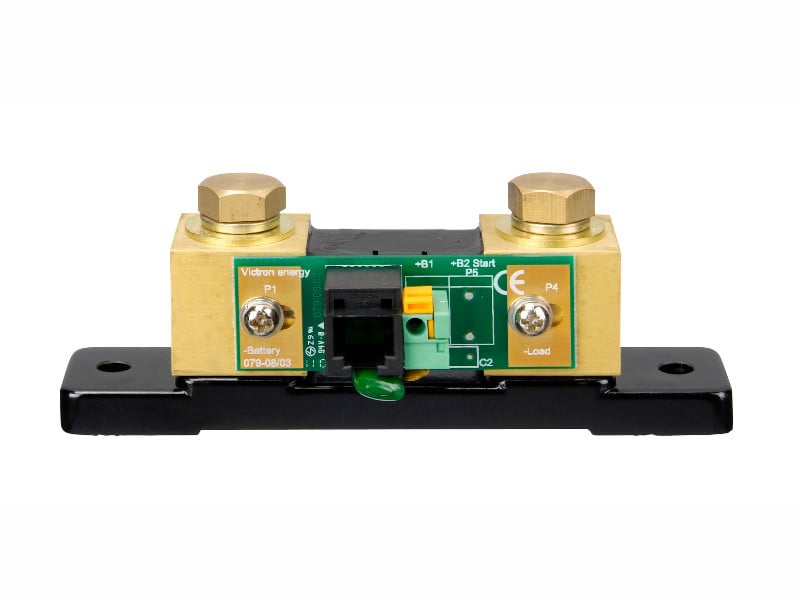

• 500 Amp Quick Connect Shunt and Connection Kit
• Shunt Selection Capability up to 10.000 Amps
• VE.Direct Communication Port
• Stores a Wide Range of Historical Events, which can be used to Evaluate Usage Patterns and Battery Health
• Wide Input Voltage Range: 9,5 – 95V
• High Current Measurement Resolution: 10 mA (0,01A)
• Additional Input to Measure Voltage (of a second battery), Temperature or Midpoint Voltage, and Corresponding Alarm and Relay Settings.
