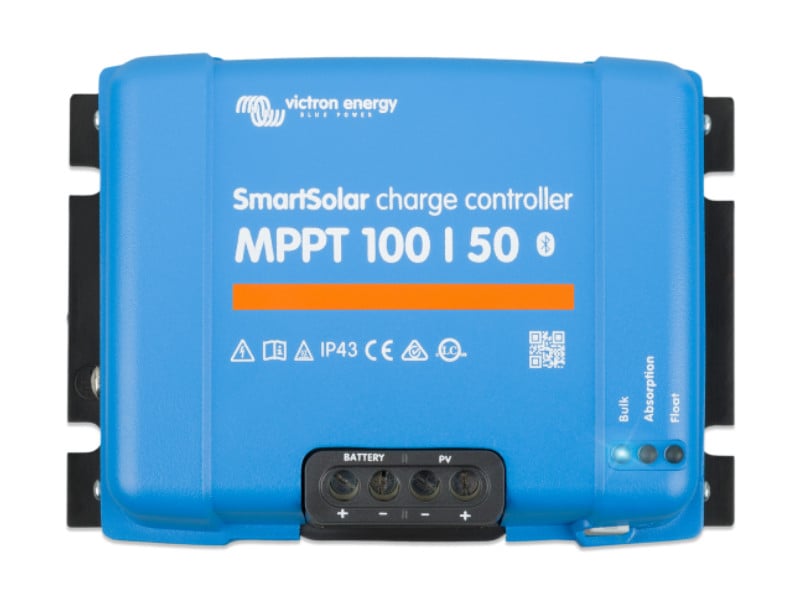

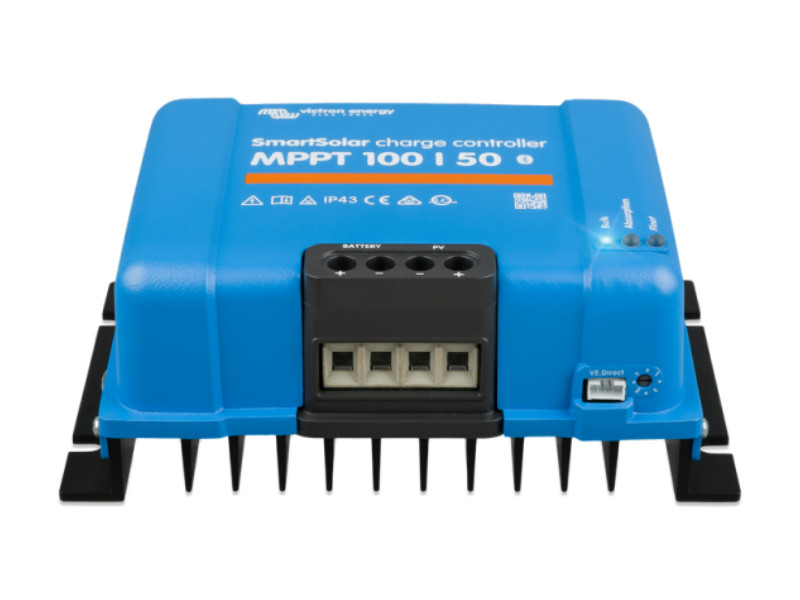

Victron SmartSolar Charge Contoller MPPT 100/50 with built in Bluetooth

$495.00 incl. GST

These highly efficient ultra-fast Maximum Power Point Tracking (MPPT) solar charge controllers have it all. High efficiency, optimal partial shading performance, programmable battery algorithms, street light functions and more. Smart is for built in Bluetooth for monitoring and control with VictronConnect.



SKU: SCC110050210 Category: Tags: , Brand:
About Victron SmartSolar Charge Contoller MPPT 100/50 with built in Bluetooth

BRAND: Victron Energy         CODE: SCC110050210

Victron SmartSolar Charge Contoller MPPT 100/50 with Built in Bluetooth

These highly efficient ultra-fast Maximum Power Point Tracking (MPPT) solar charge controllers have it all.High efficiency, optimal partial shading performance, programmable battery algorithms, street light functions and more. Smart is for built in Bluetooth for monitoring and control with VictronConnect. Options include remote monitoring over the internet via the VRM Portal.

This device has a Bluetooth Smart built-in so a dongle is not needed. The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Specifications:

  • Battery Voltage – 12/24V/ Auto Select
  • Rated charge current – 50A
  • Nominal 12V PV power – 700W
  • Nominal 24V PV power – 1400W
  • Max PV short circuit current – 60A
  • Maximum PV open circuit voltage – 100V
  • Peak efficiency – 98%
  • Self-consumption – 12V: 30 mA, 24V: 20 mA
  • Charge voltage ‘absorption’ – 14.4V / 28.8V (adjustable)
  • Charge voltage ‘float’ – 13.8V / 27.6V (adjustable)
  • Charge algorithm – multi-stage adaptive
  • Temperature compensation – -16 mV / °C
  • Protection –  Output short circuit / Over temperature / PV reverse polarity
  • Operating temperature – -30 to 60°C (full rated output up to 40°C)
  • Humidity – 95%, non-condensing
  • Data communication port – VE.Direct



Enclosure:

Colour – Blue (RAL 5012)
Power terminals – 16mm² / AWG6
Protection category – IP43 (electrical components), IP22 (connection area)
Weight – 1.3KG
Dimensions – 130mm (H) x 186mm (W) x 70mm (D)



Download Brochure for Victron SmartSolar Charge Contoller MPPT 100/50

Full Specifications
